<h2 class="MsoNormal">Introduction</h2>
In today&rsquo;s world, where electrical systems power everything from homes to industrial machinery, circuit protection is more critical than ever. At the heart of these protective measures lie circuit breakers. But not all circuit breakers are created equal. When comparing a molded case circuit breaker vs. circuit breaker, many professionals and even homeowners are left wondering what the actual difference is. Understanding the distinctions is essential for choosing the right equipment for the job, ensuring safety, and maintaining reliability.
This article will provide a detailed examination of the molded case circuit breaker (MCCB), how it compares with general circuit breakers, and the advantages each type offers. We&rsquo;ll also introduce CSQ Electric, a company known for innovation in electrical protection devices. Whether you're an engineer, contractor, or a curious DIY enthusiast, this guide will equip you with the knowledge needed to make informed decisions.
<img style="display: block; margin-left: auto; margin-right: auto;" src="https://us1.yofishseo.com/file/157/replacing-circuit-breaker.png" alt="replacing circuit breaker.png" width="700">
<h2 class="MsoNormal">What Is a Circuit Breaker?</h2>
A <a href="https://www.csqelectric.com/products/circuit-breaker">circuit breaker</a>&nbsp;is an essential component of any electrical system, acting as a safety switch that automatically interrupts current flow when it detects an overload or short circuit. This action prevents damage to the circuit, equipment, and even personal injury.
Basic Functions:
Overload Protection: Prevents circuits from overheating due to prolonged current surges.
Short-Circuit Protection: Instantly cuts power when a fault occurs.
Manual Switching: Can be used to turn power on or off manually during maintenance.
Circuit breakers are installed in homes, commercial buildings, and industrial facilities. They're commonly found in electrical panels and can be reset after tripping, unlike fuses, which must be replaced.
&nbsp;
<h2 class="MsoNormal">Types of Circuit Breakers</h2>
Circuit breakers are classified based on their current capacity, application, and design. The most common types include:
3.1 Miniature Circuit Breakers (MCBs)
Current range: Up to 100A
Application: Residential and light commercial
Characteristics: Small, fixed trip units, inexpensive
3.2 Molded Case Circuit Breakers (MCCBs)
Current range: Up to 2500A
Application: Industrial and heavy-duty systems
Characteristics: Adjustable trip units, durable casing, high interrupting capacity
3.3 Air Circuit Breakers (ACBs)
Current range: Up to 6300A
Application: High-end industrial installations
Characteristics: Used for low-voltage systems requiring high capacity
3.4 Vacuum Circuit Breakers (VCBs)
Used in medium-voltage applications
Vacuum is used to extinguish arcs
3.5 Oil and Gas Circuit Breakers
Applied in high-voltage transmission systems
Use oil or SF6 gas for arc suppression
These categories indicate the diversity in circuit breakers, each serving a specific purpose. The molded case circuit breaker stands out for bridging the gap between MCBs and high-voltage industrial breakers.
&nbsp;
<h2 class="MsoNormal">What Is a Molded Case Circuit Breaker?</h2>
A <a href="https://www.csqelectric.com/products/molded-case-circuit-breaker-mccb">molded case circuit breaker</a>&nbsp;(MCCB) is a more advanced type of circuit breaker that provides protection for electrical circuits ranging from medium to high current. It is called &ldquo;molded case&rdquo; because its components are enclosed in a molded plastic case, which provides insulation and protects against arc flash and dust.
Key Components:
Thermal Overload Mechanism: Uses a bimetallic strip that bends and trips the breaker during prolonged overloads.
Magnetic Trip Mechanism: Uses an electromagnetic coil to instantly break the circuit during short circuits.
Molded Housing: Provides durable insulation and arc containment.
Benefits:
Higher current and interrupting ratings
Adjustable settings for customized protection
Compact and robust design
Suitable for use in harsh environments
MCCBs are ideal for protecting motors, generators, HVAC systems, and complex electrical panels.

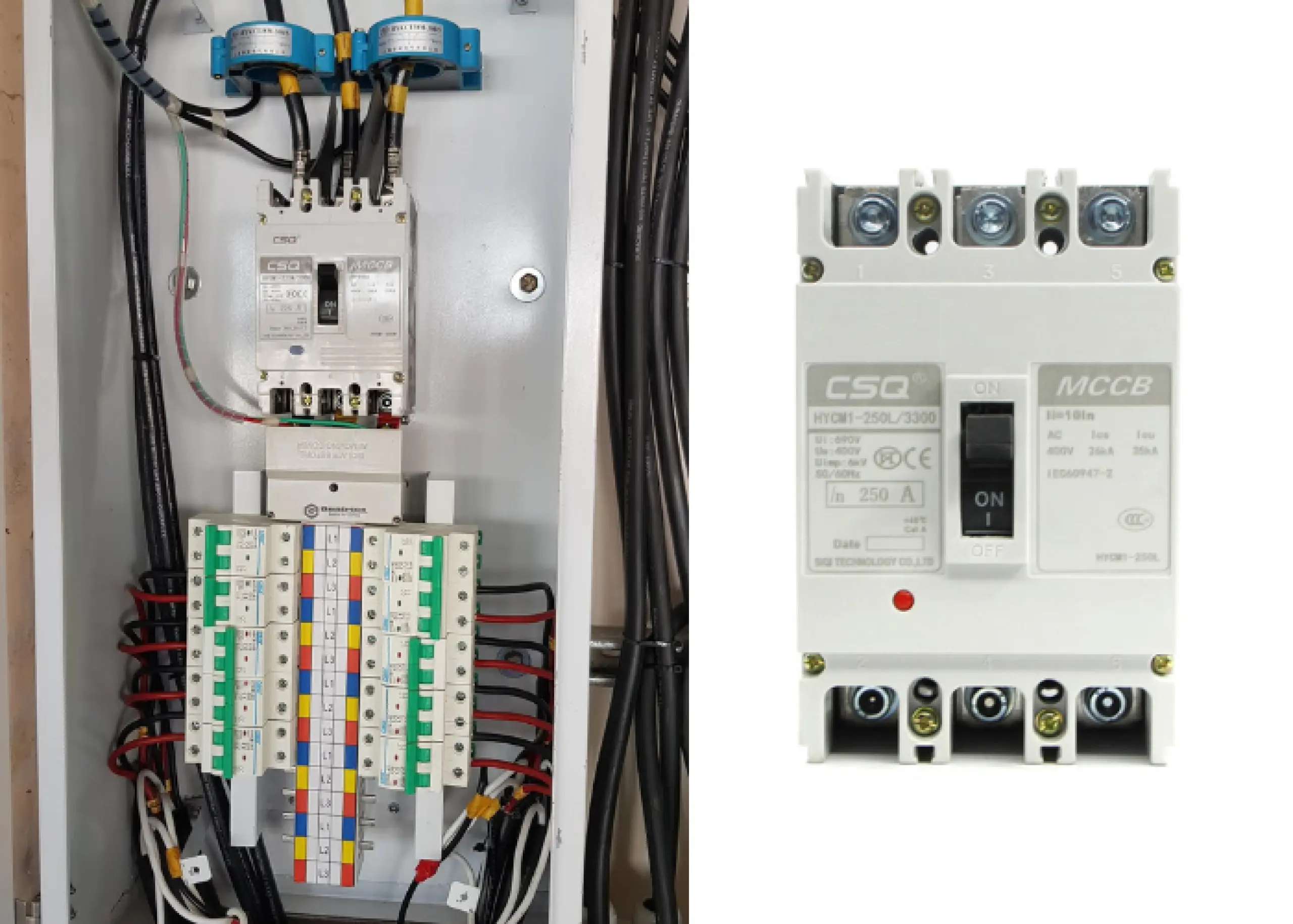

<img style="display: block; margin-left: auto; margin-right: auto;" src="https://us1.yofishseo.com/file/157/what-is-a-molded-case-circuit-breaker-(mccb).png" alt="What is a Molded Case Circuit Breaker (MCCB).png" width="700">
<h2 class="MsoNormal">Molded Case Circuit Breaker vs. Circuit Breaker: Key Differences</h2>
The phrase "molded case circuit breaker vs. circuit breaker" may sound redundant, but it highlights the difference between a specialized and a general-purpose device. Here&rsquo;s a detailed comparison:
<table class="MsoNormalTable" border="1" cellspacing="2">
<tbody>
<tr>
<td valign="center">
Feature
</td>
<td valign="center">
General Circuit Breaker
</td>
<td valign="center">
Molded Case Circuit Breaker (MCCB)
</td>
</tr>
<tr>
<td valign="center">
Current Rating
</td>
<td valign="center">
Up to 100A
</td>
<td valign="center">
Up to 2500A
</td>
</tr>
<tr>
<td valign="center">
Trip Mechanism
</td>
<td valign="center">
Fixed
</td>
<td valign="center">
Adjustable (in many models)
</td>
</tr>
<tr>
<td valign="center">
Applications
</td>
<td valign="center">
Residential, light commercial
</td>
<td valign="center">
Industrial, large-scale systems
</td>
</tr>
<tr>
<td valign="center">
Interrupting Capacity
</td>
<td valign="center">
Lower
</td>
<td valign="center">
Higher (up to 100kA)
</td>
</tr>
<tr>
<td valign="center">
Protection Type
</td>
<td valign="center">
Basic
</td>
<td valign="center">
Advanced thermal-magnetic
</td>
</tr>
<tr>
<td valign="center">
Construction
</td>
<td valign="center">
Standard casing
</td>
<td valign="center">
Molded insulated case
</td>
</tr>
<tr>
<td valign="center">
Cost
</td>
<td valign="center">
Lower
</td>
<td valign="center">
Higher, but offers more protection
</td>
</tr>
</tbody>
</table>
MCCBs are essentially heavy-duty circuit breakers built for demanding conditions and applications where safety, durability, and flexibility are crucial.
&nbsp;
<h2 class="MsoNormal">Where Molded Case Circuit Breakers Are Used</h2>
MCCBs are favored in settings where higher electrical loads and reliable protection are essential. These include:
6.1 Industrial Plants
Protect machinery, conveyors, and motors
Withstand harsh environmental conditions
6.2 Commercial Buildings
Handle HVAC systems and power distribution
Ensure uninterrupted operations
6.3 Renewable Energy Systems
Used in solar and wind power installations
Handle variable loads and environmental stress
6.4 Data Centers
Critical for protecting servers and networking equipment
High reliability and quick fault response required
The molded case circuit breaker is built to perform in these demanding environments, offering peace of mind and system integrity.
&nbsp;
<h2 class="MsoNormal">CSQ Electric: Innovating Electrical Safety</h2>
CSQ Electric is a reputable manufacturer of circuit protection devices, including advanced MCCBs. With a focus on safety, performance, and sustainability, CSQ Electric has become a trusted brand across the globe.
Company Highlights:
Offers <a href="https://www.csqelectric.com/products/miniature-circuit-breaker-mcb">miniature circuit breakers</a>&nbsp;(MCBs), MCCBs, isolator switches, and surge protection devices
Products meet international standards (IEC, CE, ISO)
Emphasizes innovation in arc suppression and energy efficiency
Key Product Features:
Modular, compact designs
Adjustable trip thresholds
High short-circuit withstand capacity
Built-in indicators and accessories
CSQ Electric&rsquo;s molded case circuit breakers are used in smart buildings, industrial automation, and utility-scale energy projects. Their commitment to quality and innovation ensures that every breaker delivers maximum protection.
&nbsp;
<h2 class="MsoNormal">Choosing Between Molded Case Circuit Breakers and Other Circuit Breakers</h2>
When deciding between a standard circuit breaker and a molded case circuit breaker, consider the following:
Choose a Standard Circuit Breaker If:
The application is residential or light commercial
Load currents do not exceed 100A
Budget is limited and advanced features are unnecessary
Choose a Molded Case Circuit Breaker If:
High power circuits (100A to 2500A) need protection
Adjustable trip settings are required
You&rsquo;re dealing with motor protection or variable loads
Environmental conditions demand a robust solution
Working with suppliers like CSQ Electric can help ensure you get the right product based on your system&rsquo;s needs and long-term safety.
&nbsp;
<h2 class="MsoNormal">Maintenance and Testing Practices</h2>
Proper maintenance ensures your molded case circuit breaker or any circuit breaker functions reliably.
Key Maintenance Tasks:
Visual Inspection: Check for discoloration, damage, and dust accumulation
Mechanical Testing: Operate the switch manually to test response
Trip Testing: Use a secondary injection kit to simulate faults
Thermal Imaging: Detect hot spots and loose connections
CSQ Electric provides technical manuals and diagnostic tools to assist in effective breaker maintenance. Regular testing can extend equipment life and avoid costly downtime.
&nbsp;
<h2 class="MsoNormal">Conclusion</h2>
In conclusion, understanding the Molded Case Circuit Breaker vs. Circuit Breaker difference is essential for anyone dealing with electrical installations. While general circuit breakers work well for basic applications, molded case circuit breakers provide the flexibility, durability, and power handling needed in more complex environments.
<a href="https://www.csqelectric.com/">CSQ Electric</a>&nbsp;continues to set the benchmark in this field by offering innovative, reliable, and safe electrical protection devices. Whether you're building a residential home or managing an industrial plant, choosing the right breaker can make all the difference in safety and efficiency.
Always consult with professionals and manufacturers to match the right product to your system's demands. With the right knowledge, you're better equipped to protect your investment and ensure uninterrupted power delivery.
For a free consultation or sample, contact us at csq@siqi.cc. Learn more at www.csqelectric.com.
